V-Notch™ 6″ Plank
Planks6 per bundle · 16′
ColorMatch® custom colours
Custom solid colours are available through Engage's ColorMatch® program, with additional lead times.
Engage Building Products
FastPlank Systems

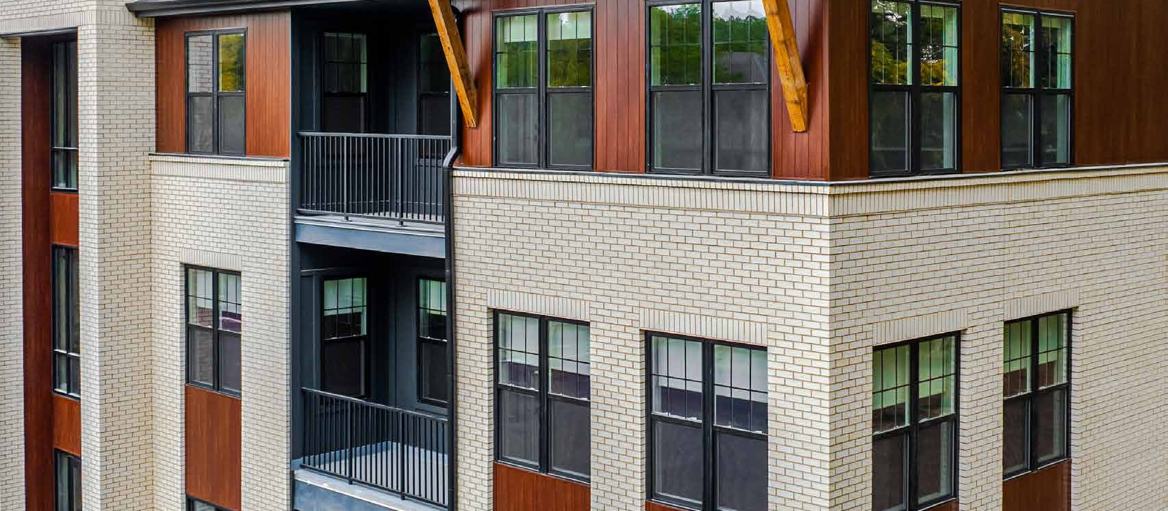

An extruded aluminum plank system in woodgrain and solid colours. Planks clip to the wall on a sliding attachment, so the wall drains and vents behind the cladding and the plank is free to move.
Profiles listed from the manufacturer's current profile legend. Planks ship 16′, trims 12′. Woodgrain and solid colours in stock ranges, or custom through the ColorMatch® program.
No profiles match that combination. Clear a filter, or ask the order desk — the mill runs specials that are not on the legend.
01
Planks
Extruded 6063-T6 aluminum at 3/64″ wall, V-Notch™ face, powder-coat and sublimation-print finish. 16′ lengths.
V-Notch™ 4″ Plank
Planks10 per bundle · 16′
V-Notch™ 4″ Perforated Soffit Plank
Planks10 per bundle · Net free air 7.7 in² / lin ft
Finish range
Colors & Finishes
28 sublimation-print woodgrains and powder-coat solids, on any plank or trim in the system. Eight are stock; the rest are special order, so check the availability line under each heading before you specify.
Stock Woodgrains
4 finishes Stock finish — no minimum
Stock Solids
4 finishes Stock finish — no minimum
Special Order Woodgrains
20 finishes Special order — 12–14 week lead timeMinimum order quantities and a 12–14 week lead timeSpecial order woodgrains may be subject to minimum order quantities and lead times of 12–14 weeks. Contact the order desk to confirm availability.
◆
◆
50-year product, 20-year finish
All FastPlank products carry a 50-year product warranty and a 20-year finish warranty.
02
Trims
Mostly two-piece: a backplate goes on before the planks, the top cap clips in afterwards so no fastener shows. 12′ lengths.
Inside / Outside Corner
Trims5 per bundle · 12′
2-Piece J Trim
Trims10 per bundle · 12′
2-Piece Intermediate Trim
TrimsMid-wall vertical · 10 per bundle
General J Trim
TrimsWindows and doors · 10 per bundle
Perforated Starter J Trim
TrimsVented base course · 10 per bundle
03
Clips & Connectors
The Clip & Slide™ attachment set. Clips hold a 3/8″ drained air cavity and let each plank move with temperature instead of buckling.
FP Plank Clip
Clips & Connectors100 per bag · 3/8″ air cavity
FP Plank Connector
Clips & ConnectorsJoins two 16′ planks, 32′ max run · 50 per bag
FP Plank Corner Key
Clips & Connectors50 per bag
FP Plank Backer
Clips & ConnectorsFastening backer at starter and termination · 50 per bag
04
Accessories
Fasteners for wood and metal backplates, bagged by the box.
FP Wood Screw 1-1/2″
Accessories250 per bag
FP Metal Screw 1-1/2″
Accessories250 per bag
FP Metal Screw 3/4″
Accessories250 per bag
Order desk
Send the elevations. Get the plank take-off back.
Plank counts by width and length, clip and connector quantities, trim runs and fasteners, priced as one package with the delivery date held.
